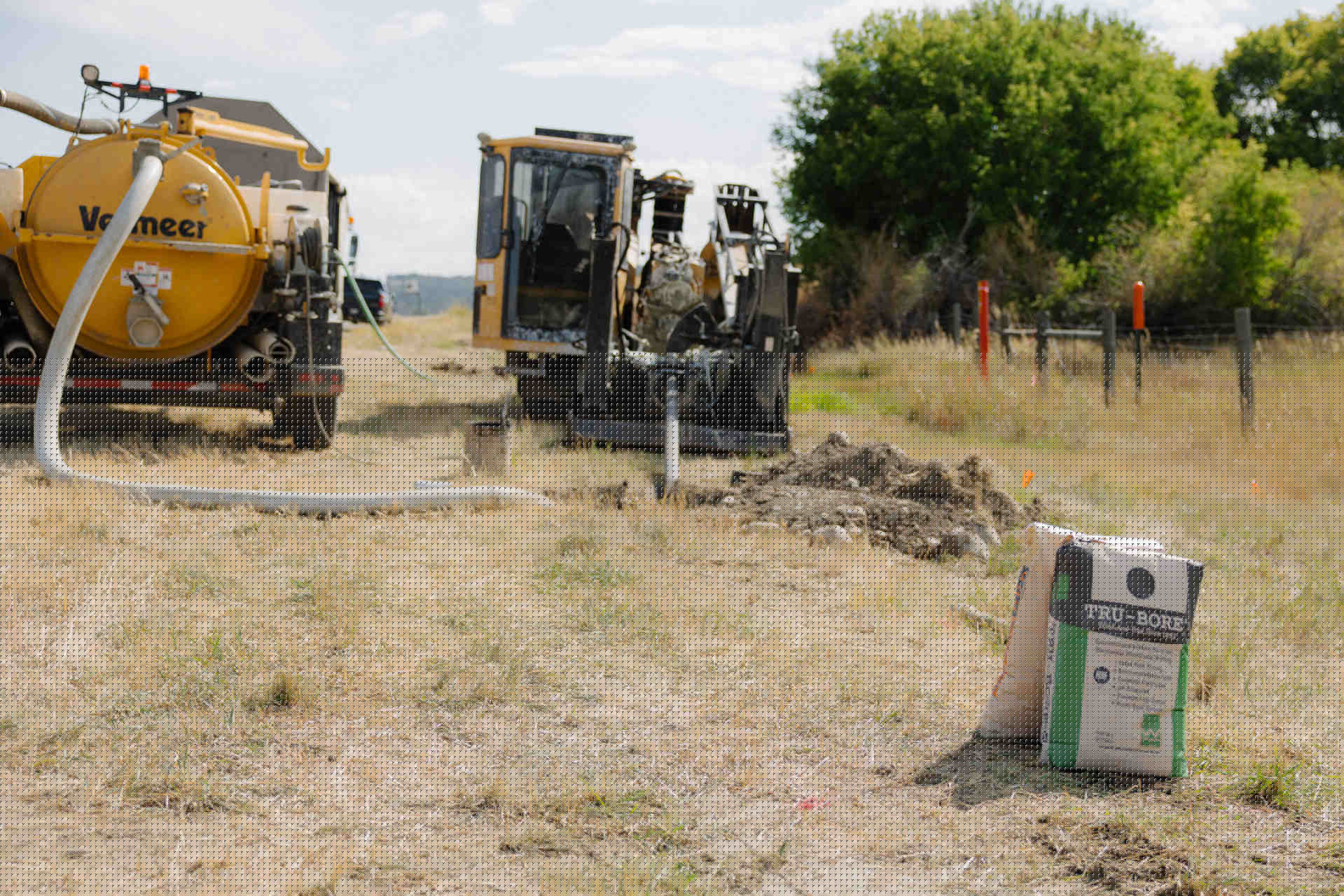

HDD Fluid Design Adjustment Saves 4,400-Foot HDD Installation

 On long horizontal directional drilling (HDD) installations, minor changes below ground can quickly translate into major surface problems. That was the case on a recent 4,400-ft waterline installation where drilling fluid performance ultimately determined the success of the bore.

 The contractor was installing a 36-in. HDPE pipeline for a municipal water transmission line. With a bore length of approximately 4,400 ft, the project required precise fluid engineering to maintain borehole integrity and manage cuttings transport over an extended distance.

While pre-bore soil information indicated predominantly sandy and silty soils, unexpected sections of unconsolidated sand were encountered during the pilot bore — introducing instability that would later affect reaming performance.

 What began as a standard fluid program evolved into a case study in why real-time drilling fluid adjustments are critical in long HDD installations.

 Initial Fluid Program

The original drilling fluid was designed using soda ash for water treatment, premium sodium bentonite, and a PAC (polyanionic cellulose) polymer for filtration control. The fluid was mixed to a target viscosity of approximately 45 seconds (Marsh funnel). In moderately sandy soils, this formulation typically provides adequate borehole support and fluid loss control while maintaining pumpability and manageable solids content. During the pilot bore, performance appeared acceptable. However, as the bore diameter increased during successive ream passes, warning signs began to surface.

Rising Pressures and Inconsistent Returns

As the reamer sizes increased to prepare for installation of the 36-inch product pipe, both push/pull forces and rotational pressures began rising higher than expected. At the same time, crews observed inconsistency in drilled solids returning to the surface. There were periods when the drilling fluid appeared heavily loaded, followed by intervals of reduced solids concentration. This fluctuation indicated irregular bore conditions — often a sign of formation instability. The longer the ream passes continued, the more evident it became that the borehole was not maintaining structural integrity.

The root cause was determined to be insufficient borehole support from the original fluid design. While the 45-second viscosity mix provided basic filtration control, it did not generate enough gel strength or filter cake quality to stabilize the unconsolidated sand zones encountered along the alignment. As those sandy formations collapsed into the bore, additional solids entered the annulus, increasing torque and drag forces. This not only elevated mechanical stress on equipment but also reduced efficiency in the mud recycling system. Without correction, the project risked escalating pressures, potential stuck tooling, or excessive pullback forces during product installation.

Fluid System Redesign

After evaluating downhole conditions and surface returns, the drilling fluid program was modified to improve borehole stability and solids management.

 Three key adjustments:

1. Increased Bentonite Concentration
   • Additional bentonite was introduced to raise viscosity from 45 seconds to a target range of 50 to 55 seconds.
   • The higher bentonite concentration improved filter cake development and enhanced wall-building capability in the unconsolidated sands.
2. Addition of Xanthan Polymer
   • Xanthan gum was added to increase low-shear-rate viscosity and improve gel strength. This modification enhanced the fluid’s ability to suspend and transport drilled solids, especially during pump shutdowns and connection breaks.
   • Improved gel structure is particularly important in long bores, where cuttings must travel extended distances without settling in the annulus.
3. Introduction of Lubricant
   • A drilling fluid lubricant was incorporated into the system to reduce friction between the reamer, borehole wall, and fluid column. This helped counteract rising torque and drag forces while protecting tooling and reducing mechanical stress.

Immediate Performance Improvement

The impact of the fluid adjustments was noticeable almost immediately. Push/pull forces and rotational pressures began to stabilize and then gradually decline on the remaining ream passes. With improved borehole support, the formation collapse diminished significantly. Returns became more consistent, indicating improved hole stability and cuttings transport. Instead of sudden surges of sand-laden fluid, solids concentration evened out across the circulation cycle. This consistency allowed the mud recycling system to operate more efficiently. When drilled solids fluctuate unpredictably, recycling systems struggle to maintain optimal separation. With stabilized returns, the recycler performed as intended, reducing waste and maintaining fluid quality. The combined effect of increased viscosity, improved gel strength, and enhanced lubrication restored operational control to the project.

Final Ream and Pullback Success

With the fluid system optimized, the final ream pass was completed without incident. Borehole integrity remained intact, and pressures stayed within acceptable operating ranges. On pullback day, the improved filter cake and lubricity provided reduced drag forces along the 4,400-ft alignment. The 36-in. HDPE pipe was successfully installed in a single, continuous pull. No stuck tooling, no excessive torque spikes, and no frac-outs were reported during the final phases of the project.

Key Takeaways for HDD Contractors

This project underscores several important lessons for HDD operations in sandy or unconsolidated formations:

• Viscosity Alone Is Not Enough – While Marsh funnel readings provide a useful benchmark, gel strength and low-shear-rate performance are equally critical for bore stability.
• Formation Conditions Can Change Quickly – Unexpected subsurface variations require fluid systems that can be adjusted in real time.
• Inconsistent Returns Signal Instability – Fluctuating solids content often indicates bore collapse or poor cuttings transport. Monitoring return quality is essential for early detection.
• Premium Bentonite Improves Stability – High-quality sodium bentonite with strong swelling characteristics forms a thinner, more competent filter cake — critical in sandy soils.
• Fluid Engineering Protects Equipment and Schedules – Properly designed drilling fluids reduce mechanical stress, improve recycling efficiency, and lower overall project risk.

The Critical Role of HDD Fluid Design in Long Bores

In long HDD installations — particularly those exceeding 4,000 ft— drilling fluids are not simply a consumable. They are a structural component of the bore itself. In this case, adjusting the drilling fluid design prevented ongoing formation collapse, reduced mechanical loads, improved recycling performance, and ultimately enabled the successful installation of a 36-in. HDPE pipeline. As HDD projects grow longer and more complex, especially in sandy or mixed-ground conditions, proactive drilling fluid management remains one of the most cost-effective tools available to contractors.  For this 4,400-ft installation, the difference between escalating pressures and a successful pullback came down to fluid performance — and the ability to recognize when adjustments were needed. In trenchless construction, stability starts with the mud.

Tyson Smith is HDD market manager at Wyo-Ben Inc.

---
